Core Thickness: 1 1/8″ thick MDF
Pattern Depth: 7/8″
Standard Panel Size: 48″ x 96″
Square Foot Weight: 2.92 lbs
Orientation: Horizontal or Vertical pattern orientation
Core Options: Premium MDF with Class C Fire Rating, Class A Fire Rated / FF MDF or Exterior Grade MDF.
Pattern Repeat: Horizontal and Vertical. The Ondata pattern can also be force matched.
Soelberg Industries manufactures custom-sized, made-to-order panels and is not responsible for inconsistencies in pattern continuation if panel configuration is not provided by the customer. Because we tailor the pattern to your project dimensions, in some cases, when adding additional panels to a project, pattern continuation is not achievable. Not all patterns can be force matched.
Installation Methods: Point support, industrial adhesive, aluminum channeling and other various millwork applications. Direct screw can be used if ordered unfinished. Because Soelberg Industries does not provide installation services, we recommend that you work directly with a professional contractor or millworker.

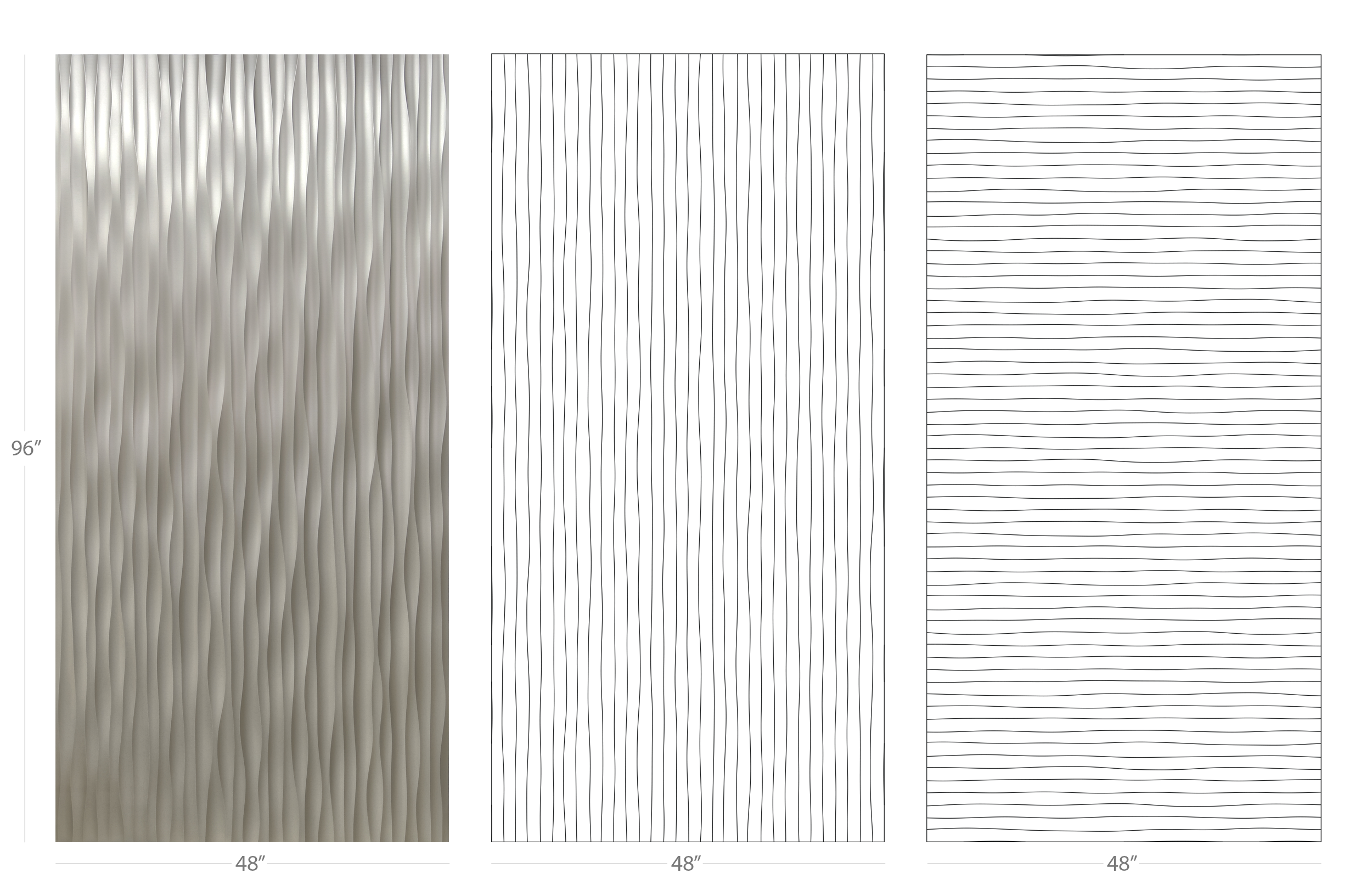

Standard 4′ x 8′ panel with pattern repeat horizontally and vertically
